Precision vises

Precision modular vises



Perpendicularity of vise jaw and work table is 50:0.02
 Made of high-quality alloy steel, the case hardness is HRC
 58-62. Suitable for milling, boring, drilling and grinding or
 CNC machine, machining center, and ordinary machines
  • Product Description

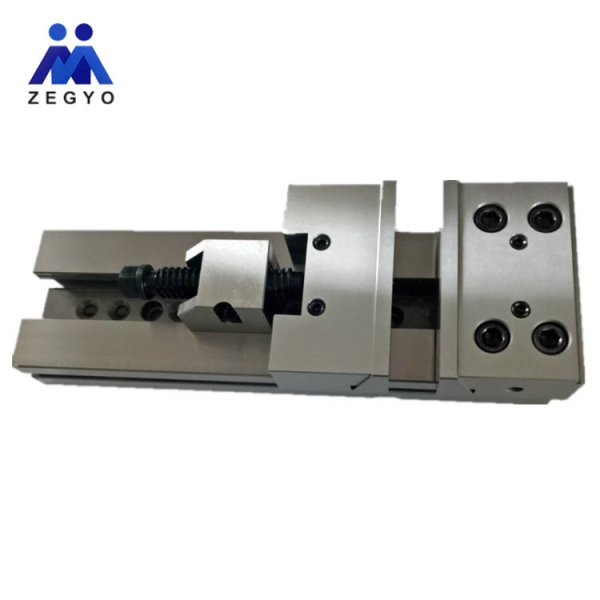

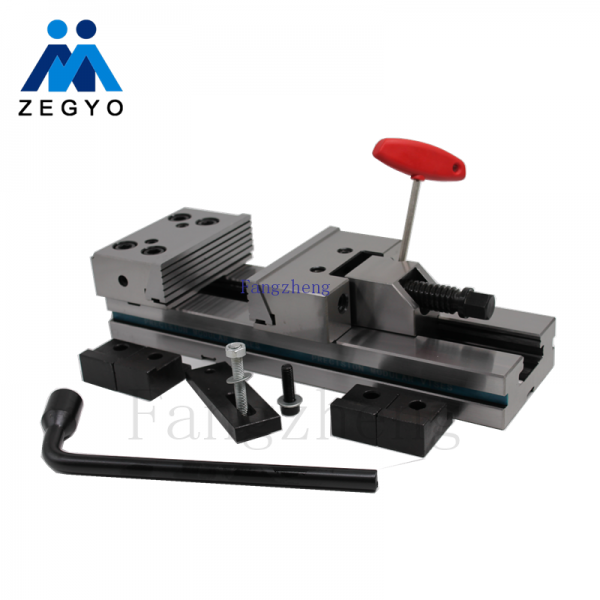

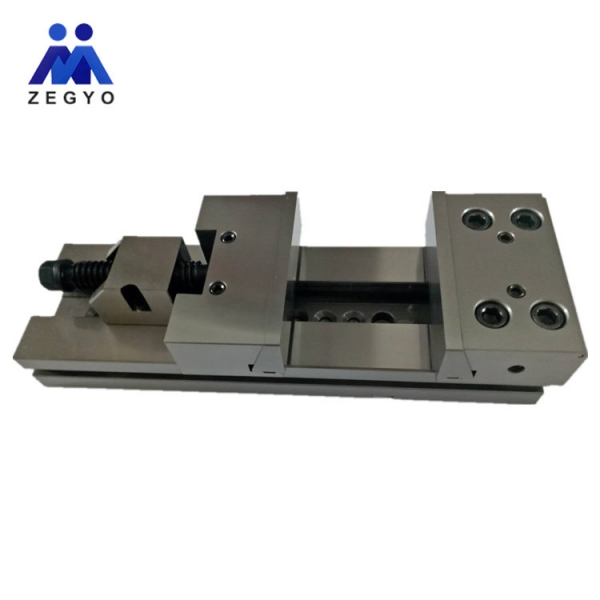

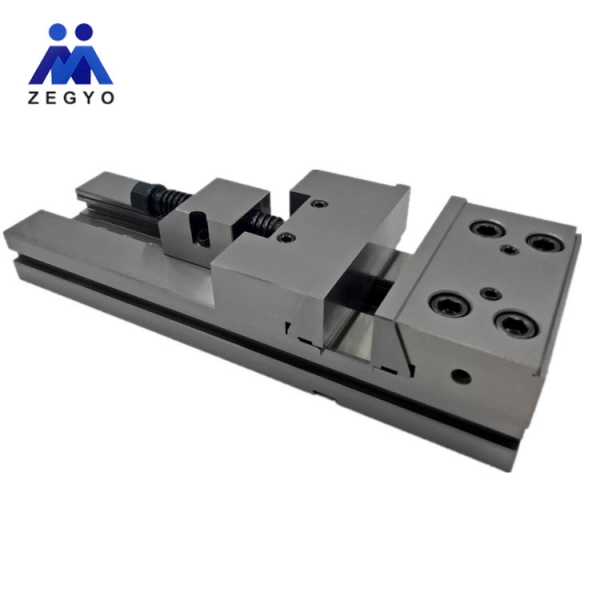

    GT MODULAR PRECISION VISES
    Material

    Made of high quality alloy structural steel



    Advantages
    high surface hardness, good finish, simple operation, large clamping force and high parallel / vertical precision
    Suitable
    Various machining centers and precision lathes.
    1.Choose the right vise and fix it on the workbench.
    2.Unscrew Inner hex-angular screw cap wire(16) to make the supporting seat(7) move freely.
    3.Move the supporting seat(16) according to the target size. Fix the steel ball(17) to the suited hole of vise’s main body(15)
    4.Tighten the inner hex-angular screw of supporting seat to fix it.
     5.Use socket spanner to rotate lead screw(8) in order to move movable jaw block(6) for the purpose of tightening and loosening.
    6.Above-mentioned instructions are applicable to all sorts of product designs.1.Choose the right vise and fix it on the workbench. 2.Unscrew Inner hex-angular screw cap wire(16) to make the supporting seat(7) move freely. 3.Move the supporting seat(16) according to the target size. Fix the steel ball(17) to the suited hole of vise’s main body(15) 4.Tighten the inner hex-angular screw of supporting seat to fix it. 5.Use socket spanner to rotate lead screw(8) in order to move movable jaw block(6) for the purpose of tightening and loosening.
    • Announcements and Maintenance

    1.This are precision Modular Vises. It should be used on the machine platen with high plane level ≤0.005mm. 2.Please use trapezoidal pressing plate to fix the vise. It’s forbidden to use the screw hole of vise to fix it. 3.Maintenance: Be sure to frequently inject lubricating oil for easily worn parts. Please remove iron and take anti-rust measures after use. It’s forbidden to move jaw and lead screw with iron. Beware of causing damage to vises to avoid reducing service life.
    4.Please take anti-rust measures and pack in plastic box if don’t use often.

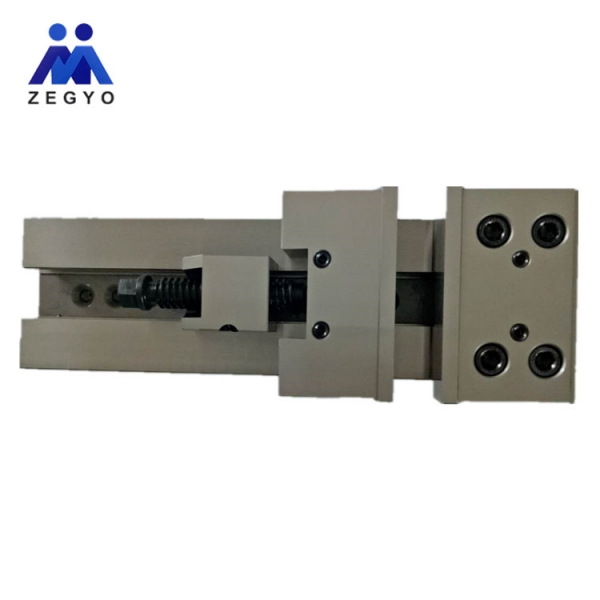

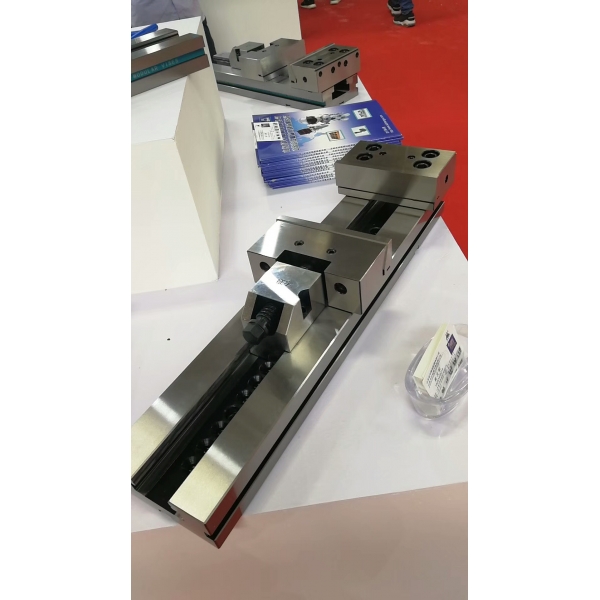

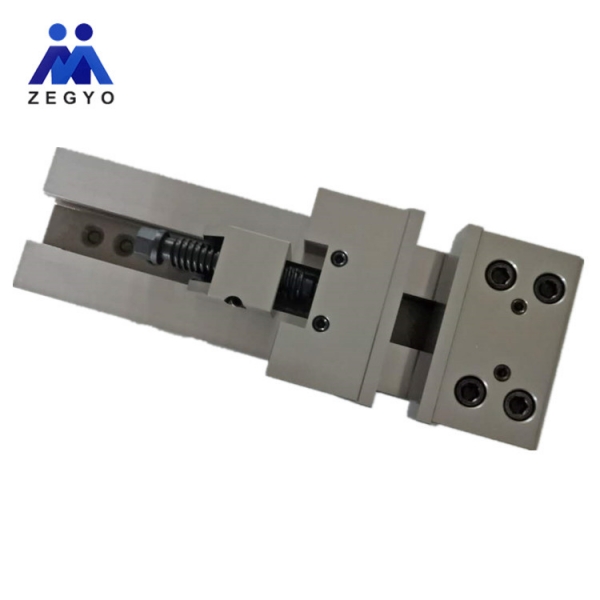

    Detailed Images
