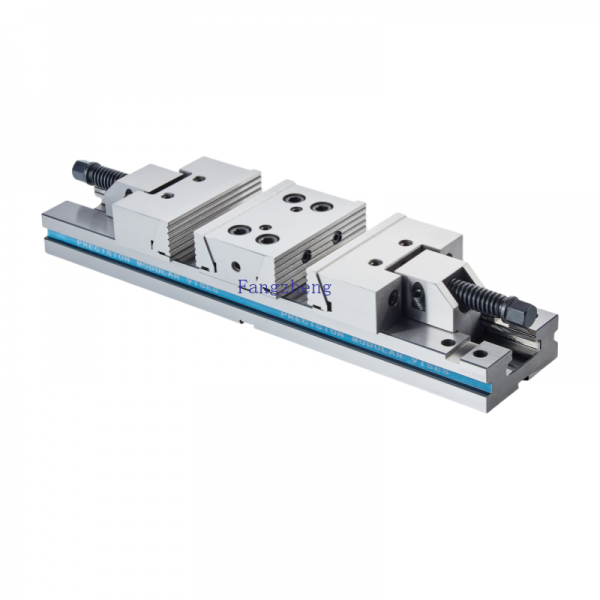

The product introduction of ZQ83 single and bidirectional combination flat pliers is as follows:

Product Features

-Material and Hardness: High quality alloy cast iron has undergone special treatment, with a working face hardness of HRC58-62, possessing high wear resistance and tensile strength, ensuring good accuracy and performance of the pliers during long-term use, reducing wear and deformation, and extending service life.
-Accuracy: Parallelism ≤ 0.01mm/100mm, perpendicularity ≤ 0.005mm. High precision can ensure the positional accuracy when clamping workpieces, meeting the requirements of precision machining for workpiece clamping accuracy. For example, in milling, drilling and other machining processes, it can effectively ensure the machining dimensions and positional tolerances.
-Function: Can be used as a one-way clamp or a two-way clamp. When used as a one-way clamp, it has an ultra long opening, which can meet the clamping needs of workpieces of different sizes and has a wider range of applications; Suitable for machining centers, CNC milling machines, boring machines, surface grinders, gantry milling machines and other machine tools, with strong universality and convenient use in different machining scenarios.

Specification parameters

Different models correspond to different size parameters, such as jaw width (S), jaw body width (B), jaw body height (H), and length (L), to adapt to clamping workpieces of different sizes. For example, the ZQ83100 model has a jaw width of X2X10, jaw body width of 100mm, jaw body height of 30mm, and length of 440mm.

accessory

Including practical pad iron, mountain wrench, pressure block, T-shaped wrench, positioning flat key, etc., these accessories help assist the flat pliers in more accurate clamping, positioning and other operations, ensuring smooth processing.
