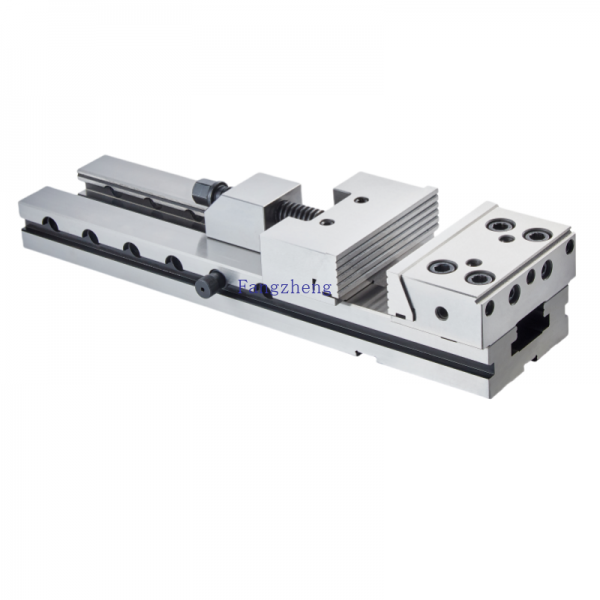

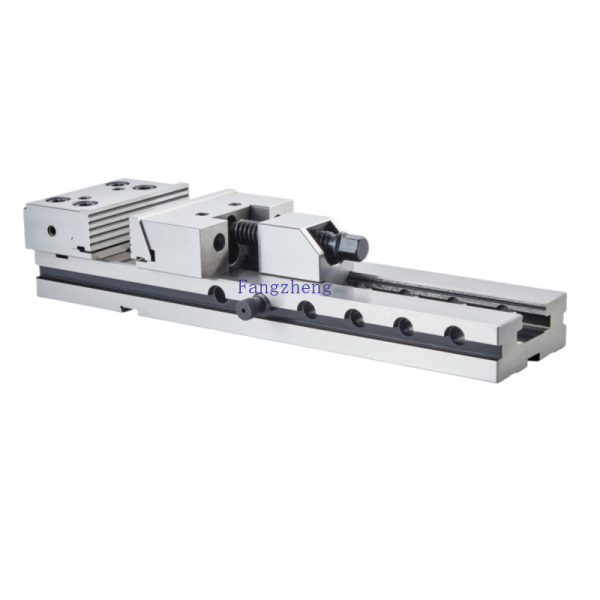

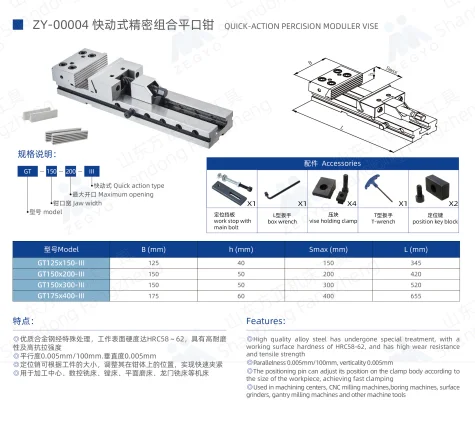

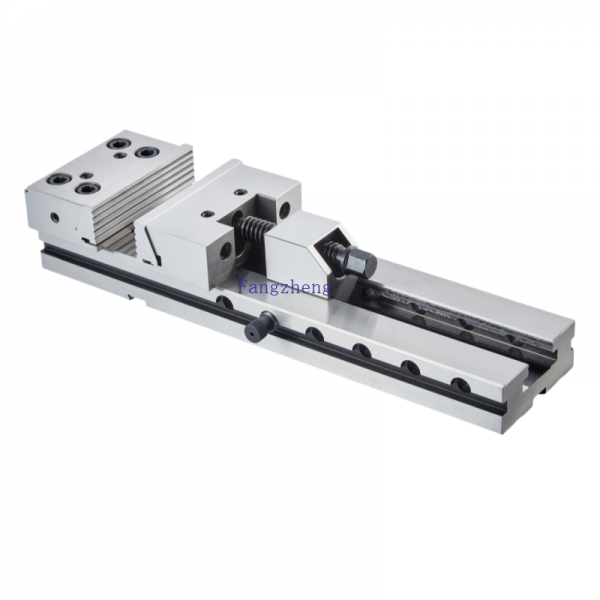

The performance analysis of fast acting precision combination flat pliers is as follows:

Materials and Hardness

Adopting special treatment of alloy cast iron, the working surface hardness reaches HRC58-62, which ensures that the working surface is not easily worn, can maintain accuracy and performance for a long time, extend the service life of the flat pliers, and can stably maintain the clamping effect on the workpiece in frequent clamping scenarios.

Accuracy performance

-Parallelism: The parallelism can reach 0.01mm/100mm, which means that within a length range of 100mm, the parallelism deviation of the relevant working surface of the flat pliers is extremely small. When clamping the workpiece, it can make the workpiece more accurately in a parallel state. For machining with parallelism requirements (such as milling the plane, drilling to ensure that the hole is parallel to the plane, etc.), it can improve machining accuracy.
-Verticality: With a verticality of 0.005mm, the flat jaw pliers have high vertical accuracy on all working surfaces in spatial angles. After clamping the workpiece, the position accuracy of the workpiece in the vertical direction is easier to control. For processes such as machining vertical hole systems and vertical surfaces, it can reduce machining errors caused by insufficient accuracy of the flat jaw pliers.

functional design

-Quick action function: The quick action design improves clamping efficiency. Compared with ordinary flat pliers, it can complete workpiece clamping and releasing operations faster. In processing scenarios such as batch production and frequent workpiece replacement (such as multi process machining on CNC machining centers), it can save auxiliary time and improve production efficiency.
-Adaptability: Suitable for machining centers, CNC milling machines, boring machines, surface grinders, gantry milling machines and other equipment, with strong universality. Enterprises do not need to equip different equipment with separate flat mouth pliers, reducing equipment investment costs. When multiple devices work together to process the same workpiece, the flat mouth pliers have good clamping consistency, which is conducive to ensuring the overall machining accuracy of the workpiece.
