Precision vises

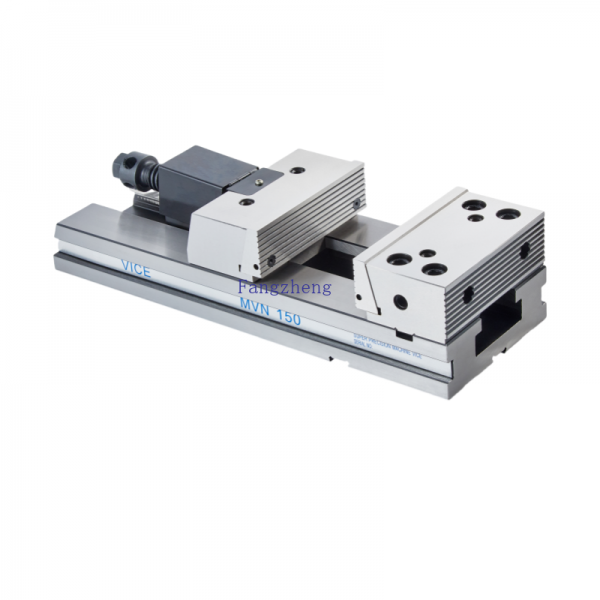

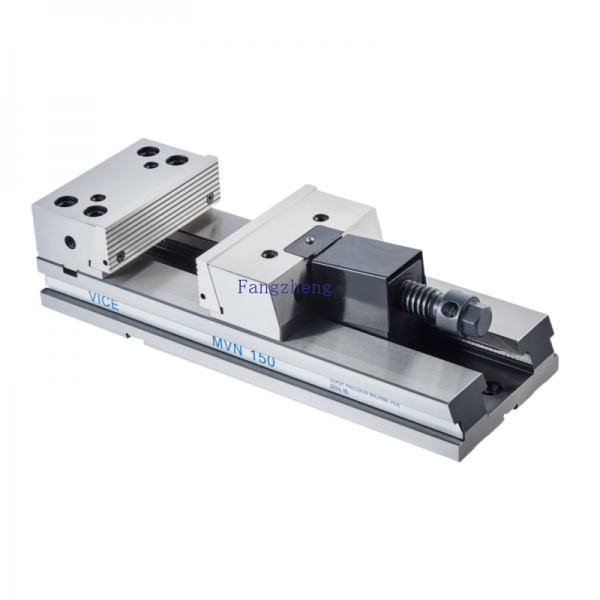

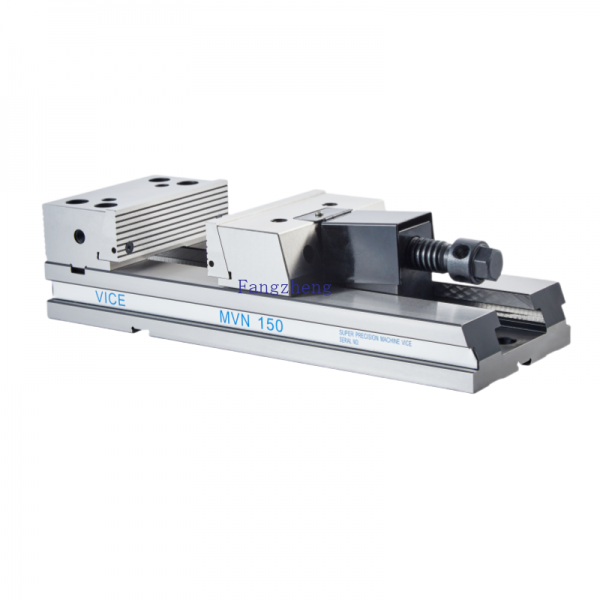

MVN type precision quick move vise

MVN .png

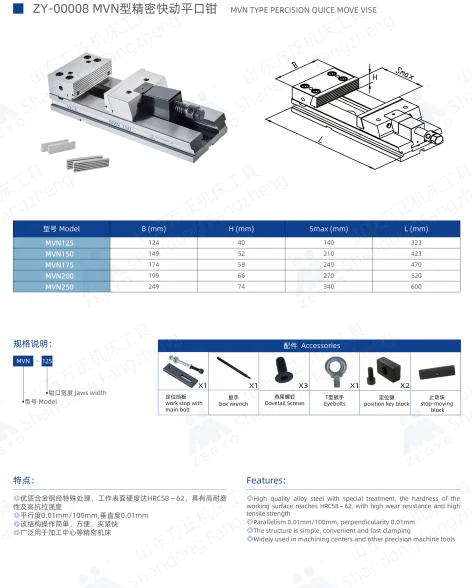

  • The product description of MVN type precision quick action flat pliers includes the following physical information:

    -Product Name: MVN Type Precision QUICE MOVE VISE
    -Model specifications: There are MVN125, MVN160, MVN180, MVN200, MVN250 and other models, corresponding to different size parameters, including B (clamp width, unit: mm), H (clamp height, unit: mm), Smax (maximum opening, unit: mm), L (length, unit: mm). For example, MVN125 has B of 124, H of 40, Smax of 140, and L of 333.
    -Features:
    -Adopting high-quality alloy steel special treatment, the working surface hardness reaches HRC58-62, with high wear resistance and high tensile strength.
    -Parallelism ≤ 0.01mm/100mm, verticality ≤ 0.01mm.
    -Widely used in precision machine tools such as machining centers.
    -Accessories: including fixing blocks, wrenches, eyebolts, T-blocks, positioning keys, extension blocks, etc. Each accessory has a corresponding quantity and is used to assist in the installation and use of pliers.
