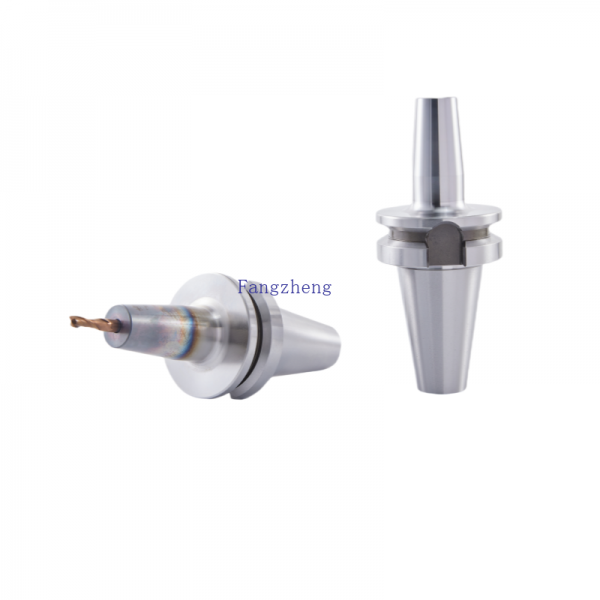

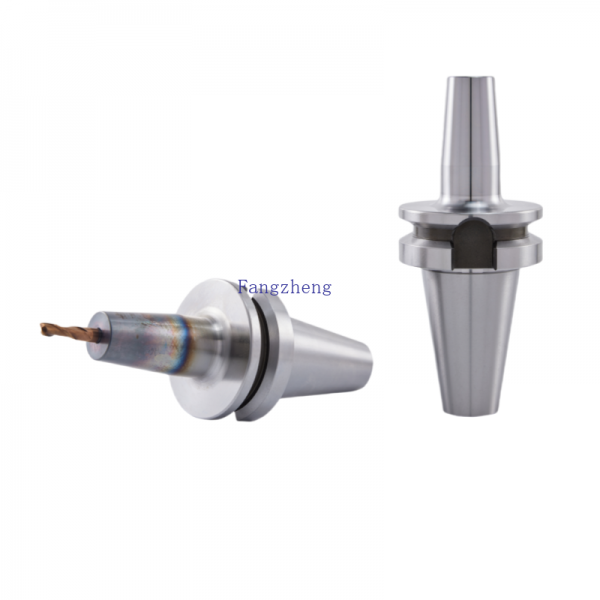

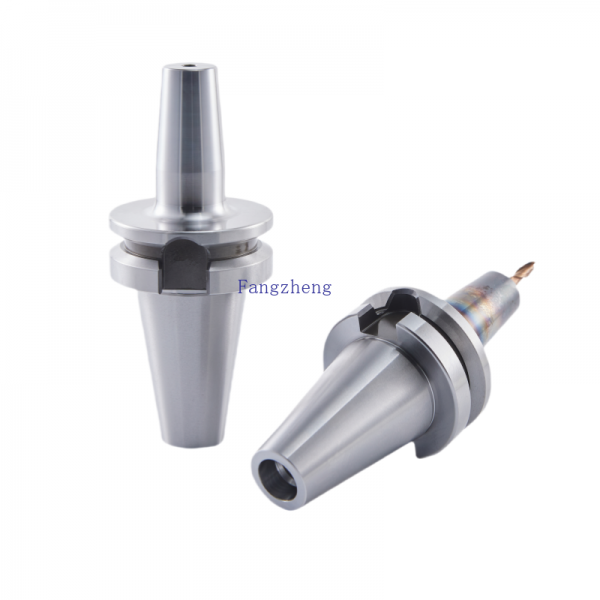

1. How It Works

The principle is very straightforward:

· Loading a Tool (Heating - Shrinking):
1. Use a dedicated thermal shrink machine (induction heating device) to rapidly and locally heat the front end (tool holding part) of the tool holder.
2. The inner diameter of the holder‘s front end expands due to the heat.
3. Quickly insert the cutting tool (e.g., an end mill) into the expanded inner hole.
4. Stop heating. The front end of the tool holder cools quickly in air or via a cooling sleeve and contracts.
5. After cooling and contraction, the inner hole of the tool holder tightly and uniformly grips the tool shank, achieving extremely high clamping force.
· Unloading a Tool (Re-heating - Releasing):
1. Briefly heat the front end of the tool holder again with the thermal shrink machine.
2. The inner hole expands, releasing the clamping force.
3. The tool can then be easily removed.

---

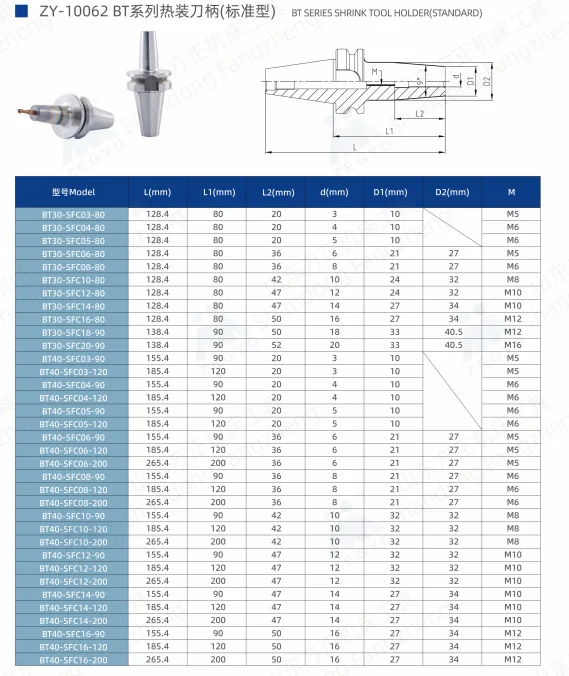

2. Key Features and Advantages

· Extremely High Concentricity (Low Runout): Due to its monolithic and symmetrical structure without additional clamping parts (like nuts, screws, or collets), it offers excellent dynamic balance. Runout is typically controlled within 3µm. This is one of its most prominent advantages.
· Superior Rigidity: The monolithic design and full-circumference gripping method provide very high rigidity, effectively suppressing vibration.
· Excellent Gripping Force: The uniform shrinkage force provides powerful clamping force, effectively preventing tool slippage or pull-out during high-speed and heavy-duty cutting.
· Simple Profile: The absence of protruding components gives it excellent clearance for deep cavity and narrow gap machining, preventing interference.
· Excellent Dynamic Balance: High symmetry and good dynamic balance make it highly suitable for high-speed machining.

---

3. Disadvantages and Considerations

· Requires Special Equipment: A dedicated thermal shrink machine is necessary for loading and unloading tools, representing a high initial investment cost.
· Longer Tool Change Time: The tool change process is more time-consuming compared to mechanical chucks (like ER collet chucks), making it unsuitable for applications requiring frequent tool changes.
· Thermal Cycling Effects: Repeated heating and cooling cycles can potentially affect the microstructure of the holder material and the tool (although high-quality thermal shrink holders undergo special heat treatment to withstand this).
· High Demands on Tool Shank: The tool shank must be very clean, free of scratches or burrs, as these can affect clamping accuracy and service life.

---

4. Comparison with BT40-DC Back Locking Collet Chuck

Feature Thermal Shrink Fit Holder BT40-DC Back Locking Chuck
Principle Thermal expansion & contraction Mechanical rear-pull locking
Precision/Runout Extremely High (Typically < 3µm) Very High (Typically < 5µm)
Rigidity Extremely High (Monolithic structure) Very High
Gripping Force Extremely High (Uniform shrinkage) Very High
Tool Change Speed Slower (Requires heating/cooling) Faster (Uses a wrench)
Initial Cost High (Requires thermal shrink machine) Medium-High (Requires only a special wrench)
Profile Ultra-slim, no protrusions Slim, no front nut
Application Scenario Ultra-high-speed, ultra-finishing, hard material machining High-speed, high-precision, deep cavity machining

---

5. Common Applications

Thermal shrink fit tool holders are the ideal choice for:

· Ultra-high-speed machining
· Fine finishing of high-precision mold cavities
· Hard milling
· Thin-walled part machining (requiring excellent rigidity to avoid chatter)
· Applications demanding superior surface finishes

Summary

Thermal shrink fit tool holders represent the top tier of tool clamping technology. They achieve unparalleled precision, rigidity, and balance through physical principles. Although their initial investment and tool change convenience are inferior to other types of tool holders, they are an indispensable key tool in high-end manufacturing fields that pursue ultimate machining quality, efficiency, and stability.
